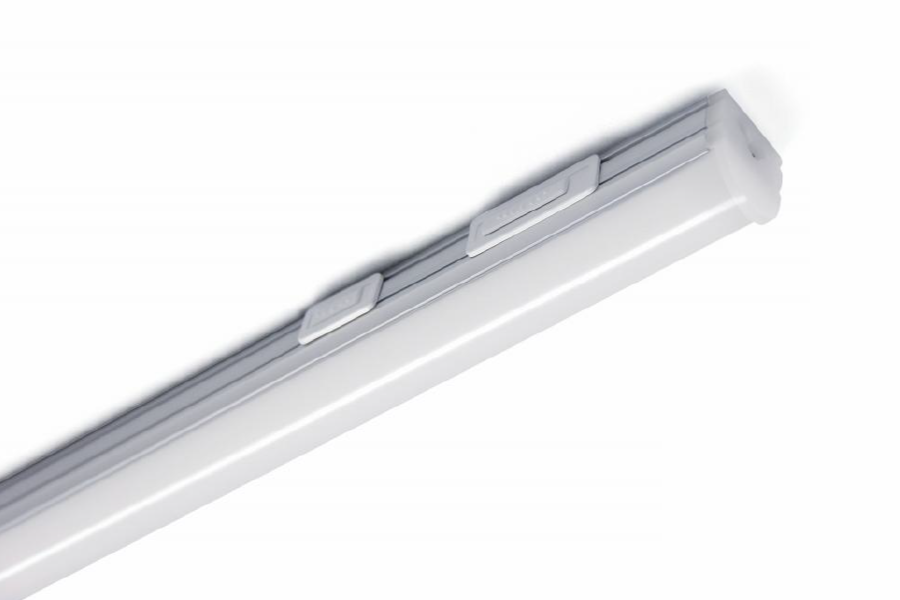

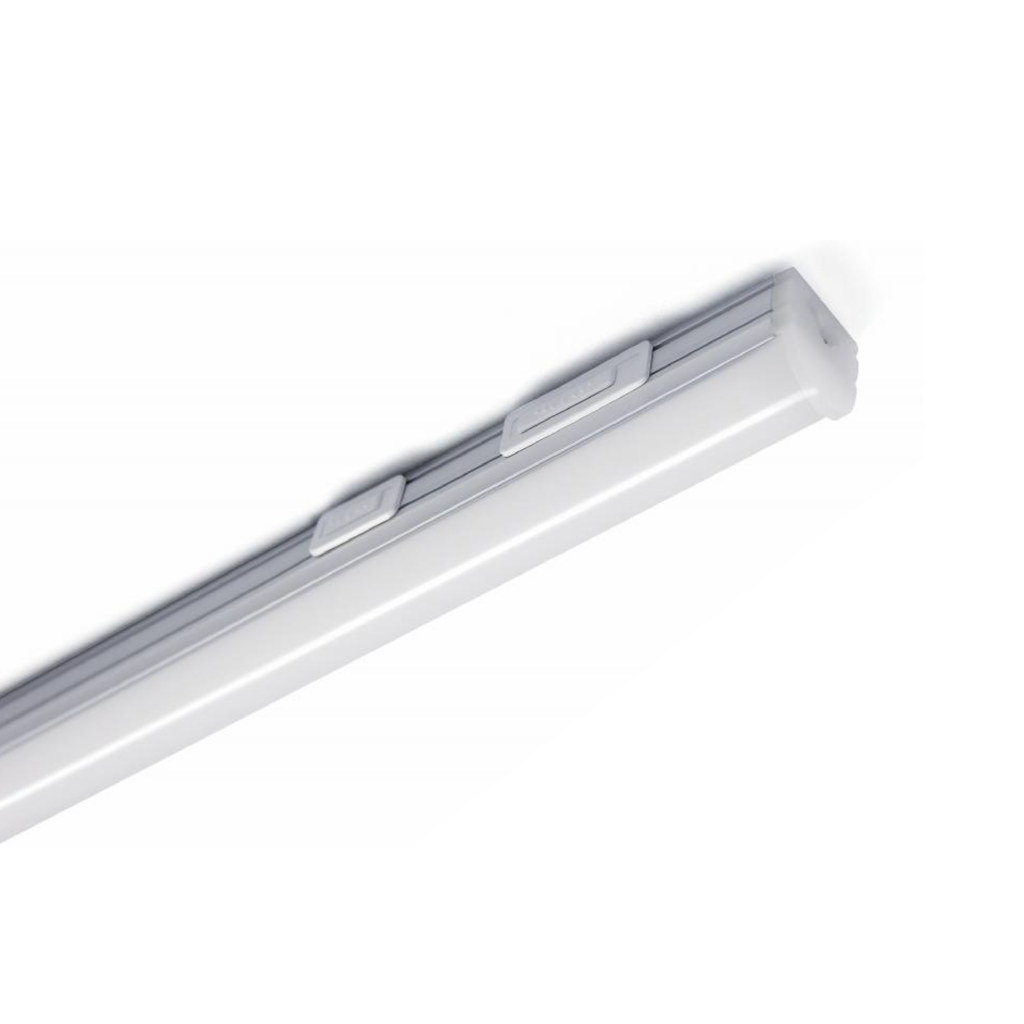

Retrofit Light Bar

DESCRIPTION
Reimagining indoor linear lighting, the Retrofit Light Bar combines unique aesthetics with exceptional optical performance. Offered with wattage and color temperature selectable, Two wattage package options are available in 10W/15W/20W or 22W/30W/40W, while the color temperature ranges from 3500K, 4000K, 5000K, 5700K, to 6500K. This flexibility makes it suitable for a wide range of lighting applications. Perfect for enhancing any commercial space. Available in a 2ft or 4ft lengths.

APPLICATION
Perfect for a wide range of indoor environments,
including offices, schools, hospitals, hotels,
supermarkets, warehouses, parking garages, and
other indoor lighting needs. Designed for exceptional
performance, this fixture enhances any space with its
reliable illumination.

LENGTH
The retrofit light bar is available in two lengths: 22.5” and 45”.

FEATURES
– Max Run Wattage
– CRI options 80+
– Beam Angle: 120˚
– Single/Double
-Ended Wiring available
– AC 120-277V, 50/60Hz

CONSTRUCTION
Extruded aluminum housing with clear/frosted lens
cover. Operating temperature range: -20° C to 60° C.

MOUNTING
Available in a Surface Mount. Mounting hardware
included: Brackets (2), Screws

WARRANTY
5 year warranty standard, Optional 10 year warranty
available upon request.

SAFETY NOTE
Do not connect more than 600W(add up) at 120VAC.
Do not connect more than 1200W(add up) at 277VAC.

LISTINGS/COMPLIANCE
• ETL – Listed IP44
• DLC
