Floating Translucent Troffer
Previous
Next
Description

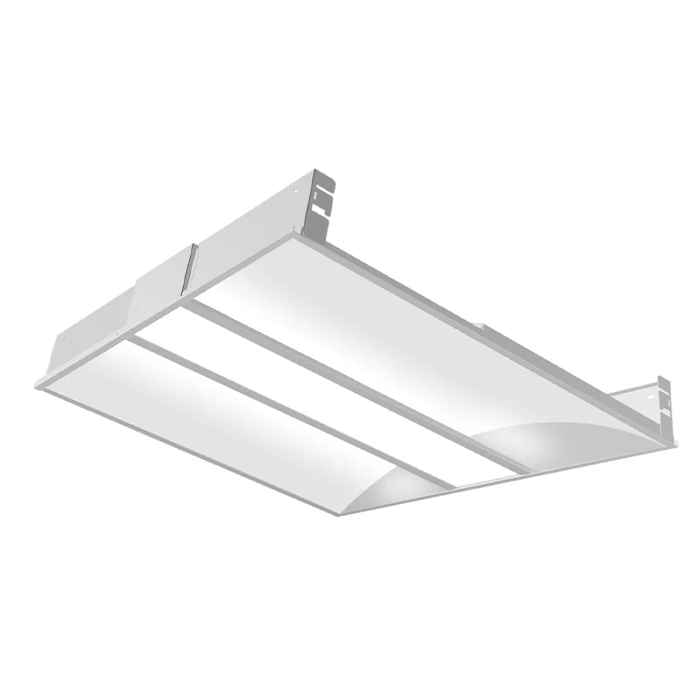

Lucid is a recessed luminaire with a traditional modern design with the latest lighting technology. Transparent optics engineered specifically for LED sources are integrated with minimalist design and architectural materials to create a broad range of solutions with superior optical and energy performance. The dip switch function gives freedom of changing between CCT option as well as lumen output.
INTENDED USAGE

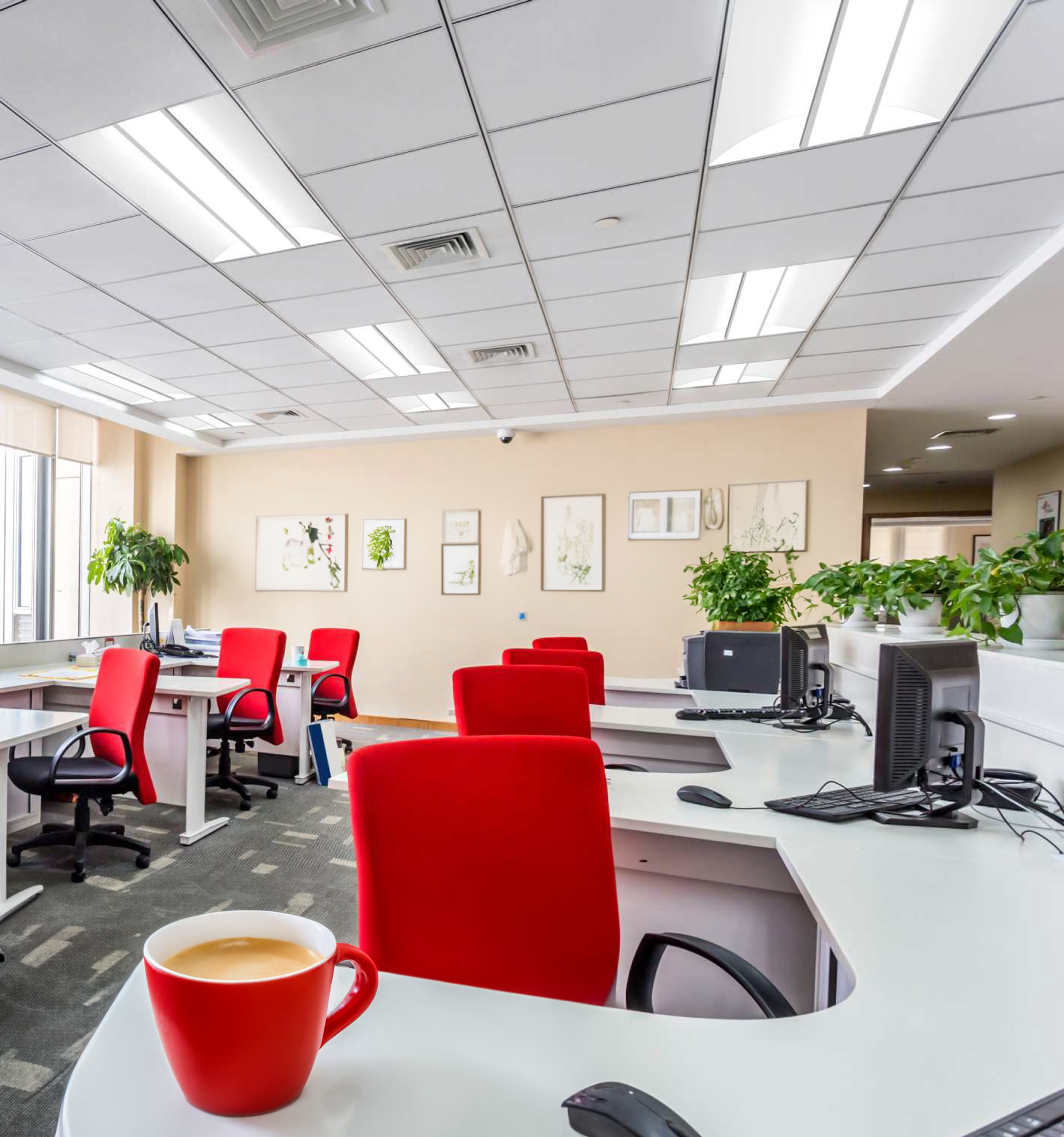

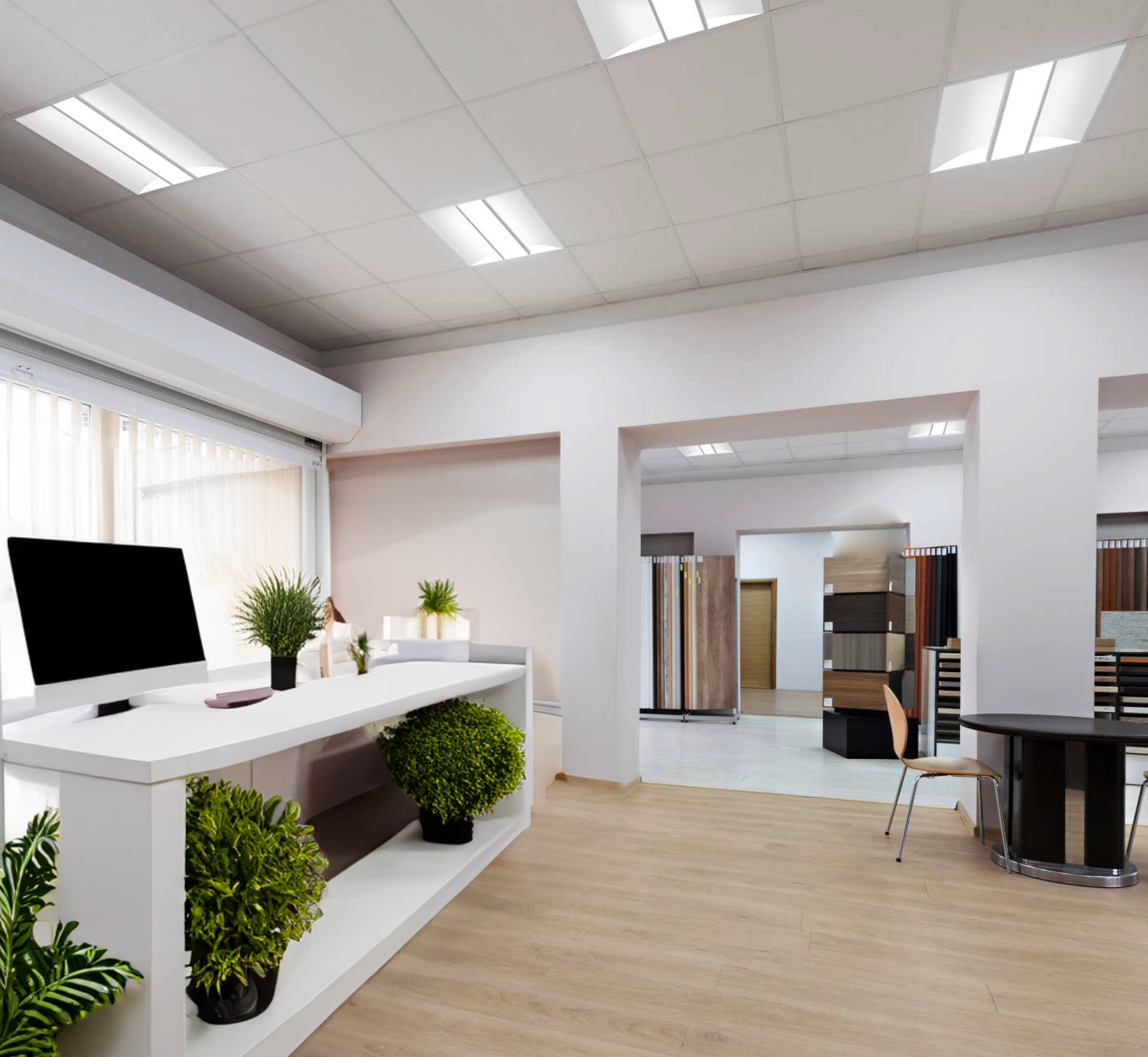

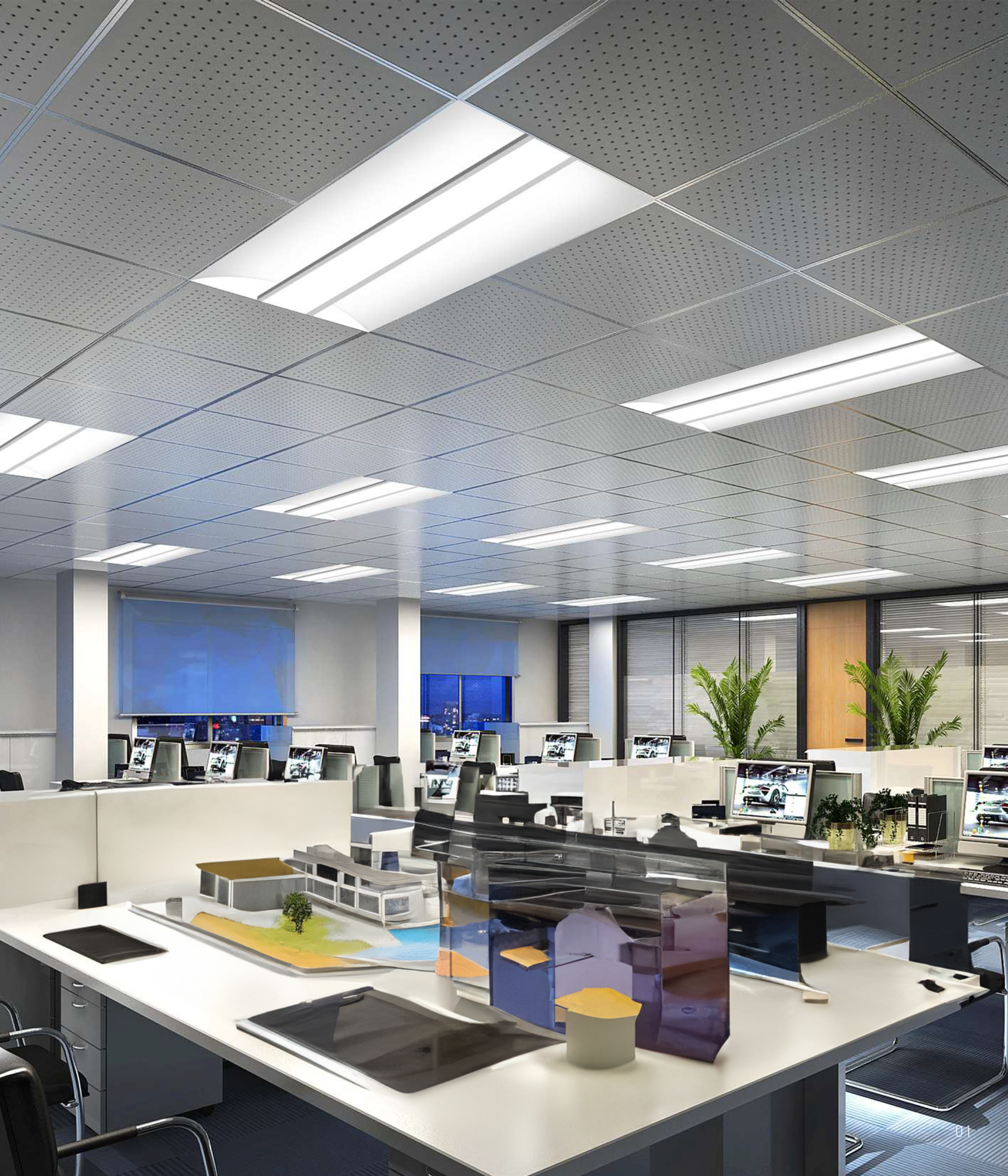

The Lucid Series is ideal for illuminating office spaces, lobbies, building hallways, garages, and medical centers.
Type
Recessed Ceiling
Lifespan
50,000 Hours Lifespan
Warranty
5 Year Limited Warranty
Construction | Finish
Optics | Electrical
Listings
Construction | Finish
Aluminum.
—
Powder-coated finish.
Optics | Electrical

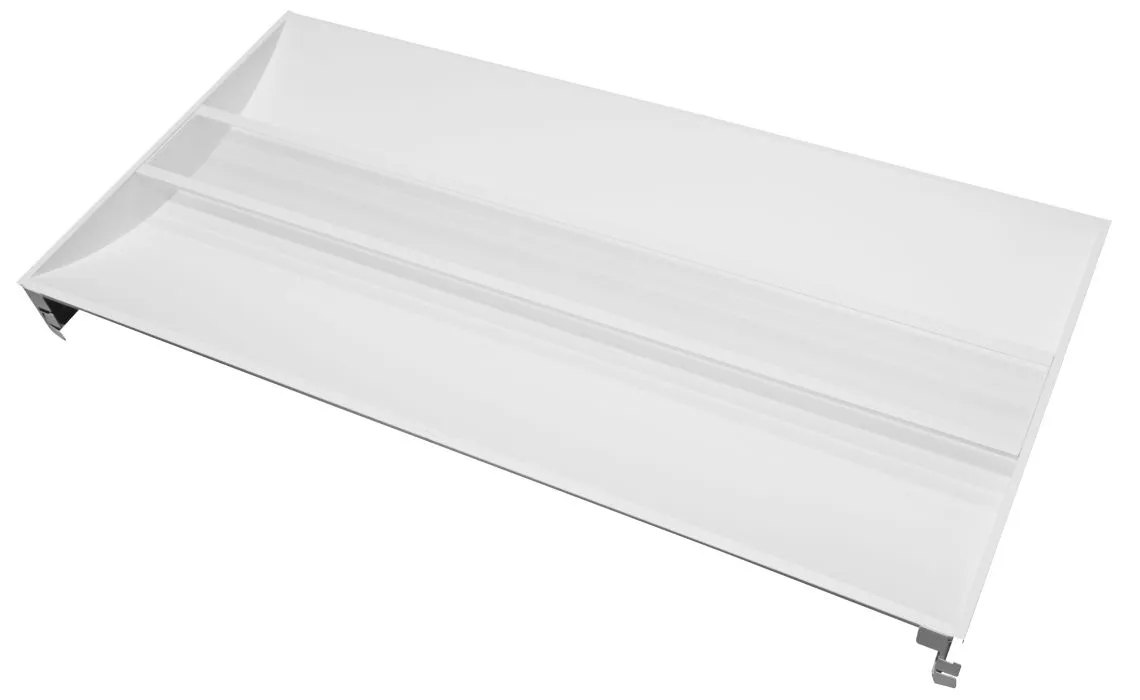

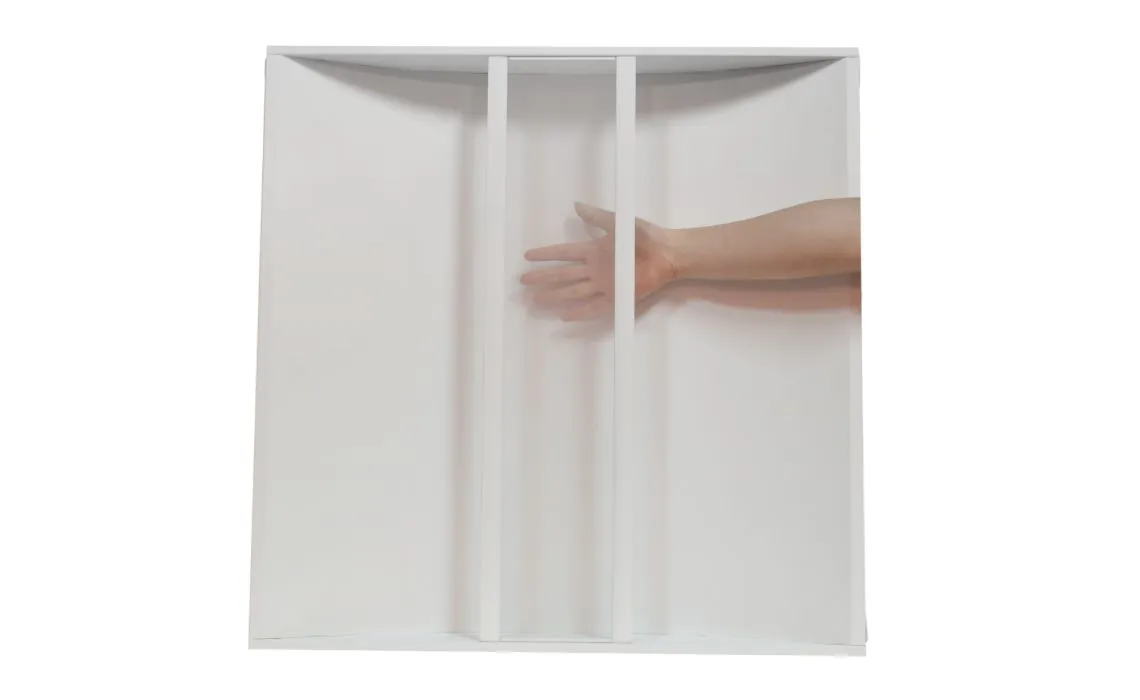

Precision laser cut optical grade acrylic guide provides uniformed lighting distribution.
—
It is powered by Class 2 high efficiency LED driver, with a standard 0-10V driver which continuous dims to 10% that works with many types of controls. Tested dimmers: Lutron®Diva-Dvtv, Leviton®IP-710-DL
Listings
UL certified. DLC 5.1. IC Rated. Suitable for damp locations. Not all product variations listed on this page are DLC qualified. Visit https://www.designlights.org/ qpl to confirm qualification.
