AR Cylinder

DESCRIPTION
AR Cylinders offer a versatile, modular DIY architectural lighting solution, available in pendant, wall, and surface mount configurations. Designed for adaptability, they feature five CCT selections, three wattage options, optional trims and reflectors, a variety of beam angles with optical lenses, and a range of compatible mounting kits.

APPLICATION
Ideal for indoor spaces such as offices, retail areas, lobbies, conference rooms, and other modern settings, this fixture combines exceptional performance with an elegant touch to enhance any atmosphere.

LENGTHS

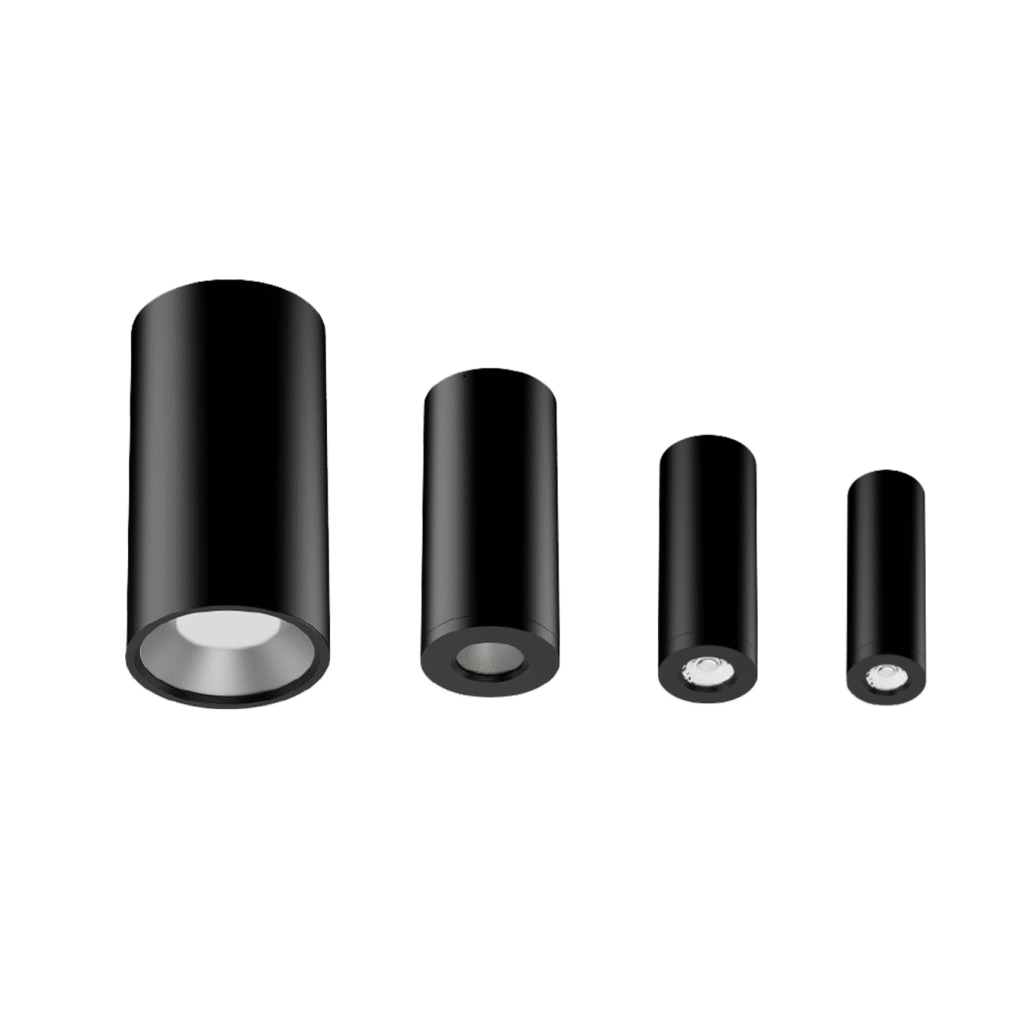

Offered in diameters of 3”, 4”, 6”, and 8”

FEATURES
– Standard 5 CCT Selectable 2700K-3000K-3500K-4000K-5000K available on 3, 4 and 6”
– Single CCT only available for 8”, 2700K-3000K-3500K-4000K-5000K
– CRI 90+
– 0-10V and TRAIC Dimming standard.
– Additional control types are available (DALI & MESH) at an additional cost.

OPTICS

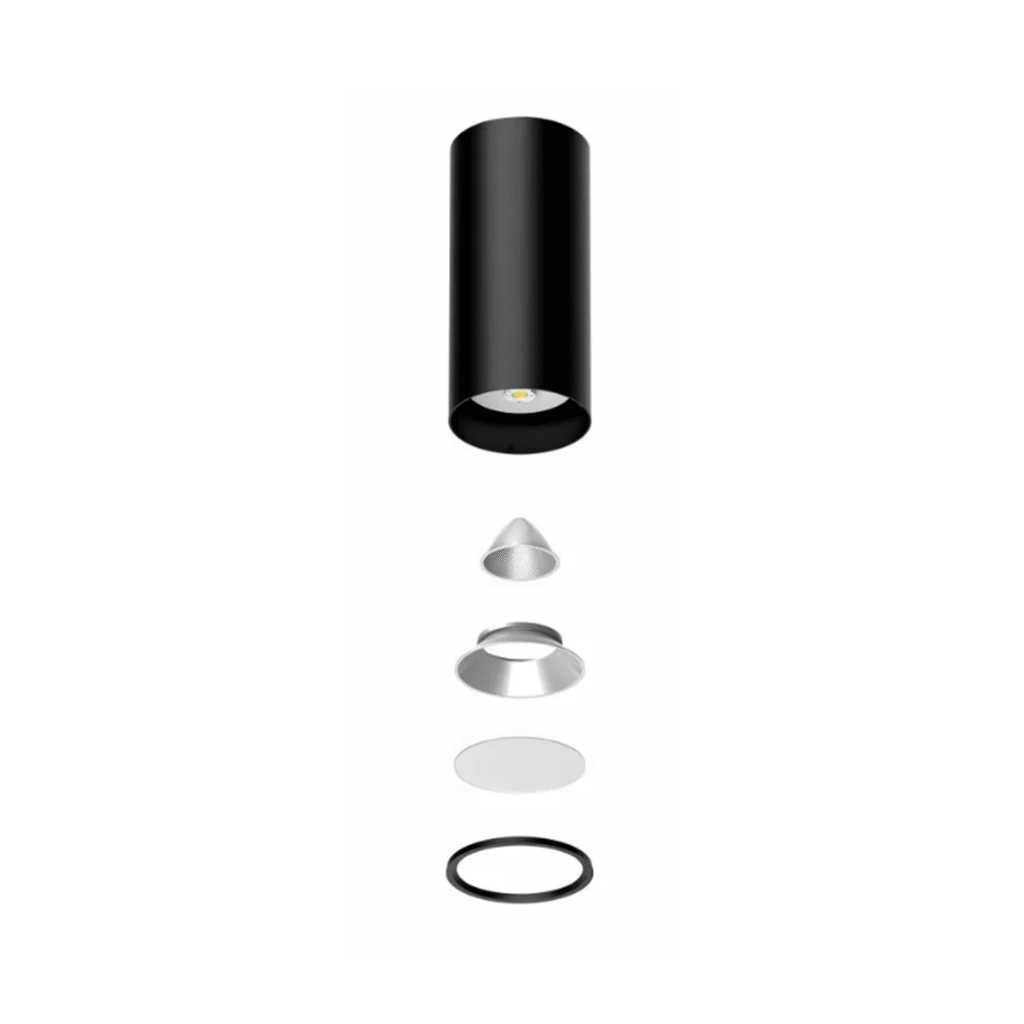

Optical lenses available with a range of beam angles.
– 3”/4” sizes: 20°, 30°, 40°, 50°
– 6”/8” sizes: 25°, 36°, 60°

CONSTRUCTION
– Precision cut housing extruded from 6063 aluminum.
– The height of the cylinder can be customized.
– Operating temperature range: -25° C to 40° C.

FINISH
Powder coated white, black or gray are standard. Custom RAL colors Available.

MOUNTING

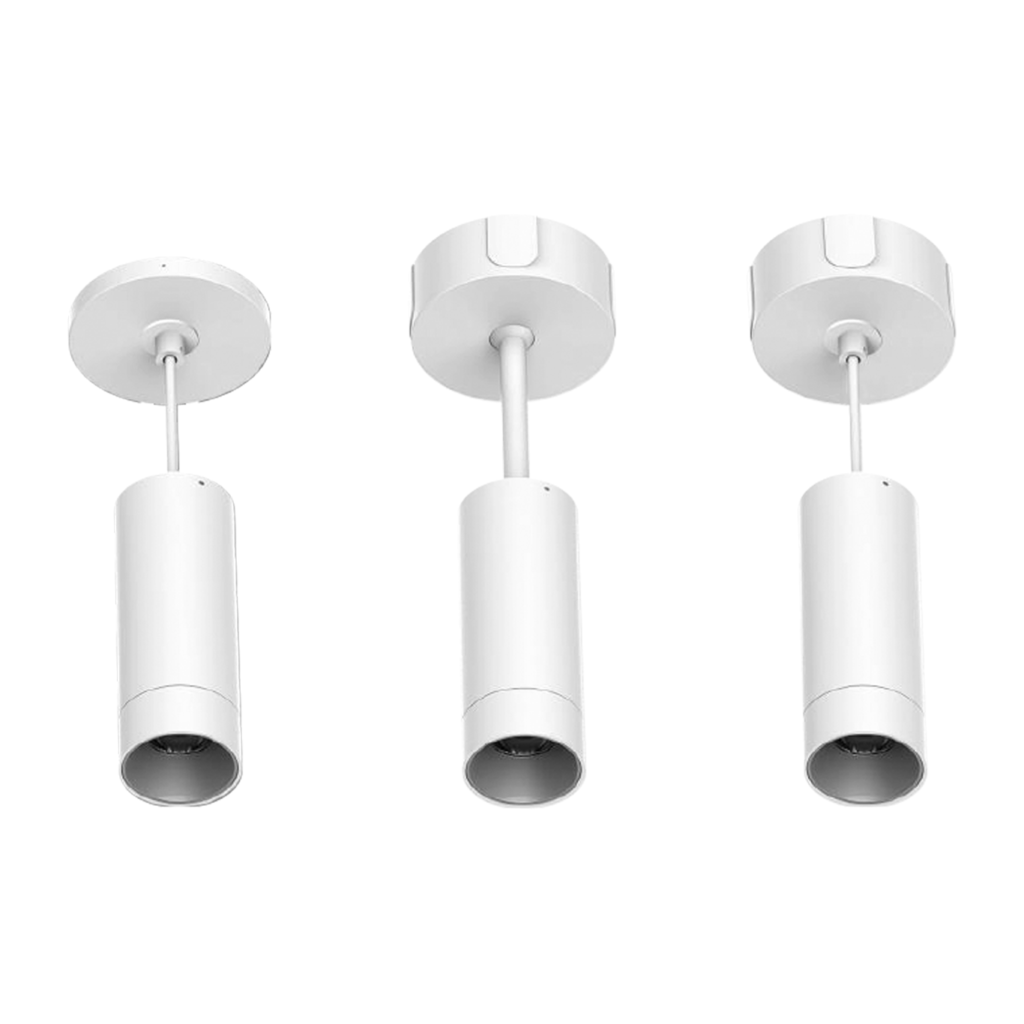

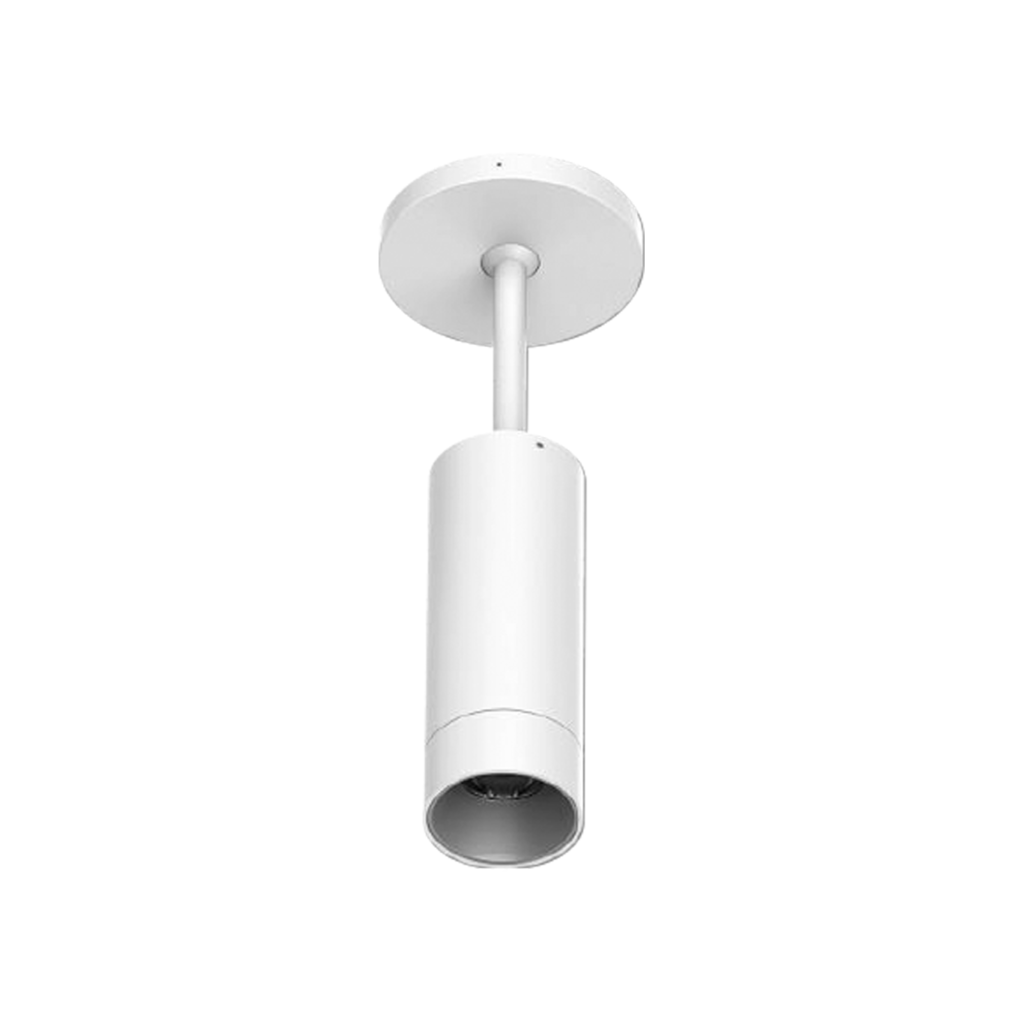

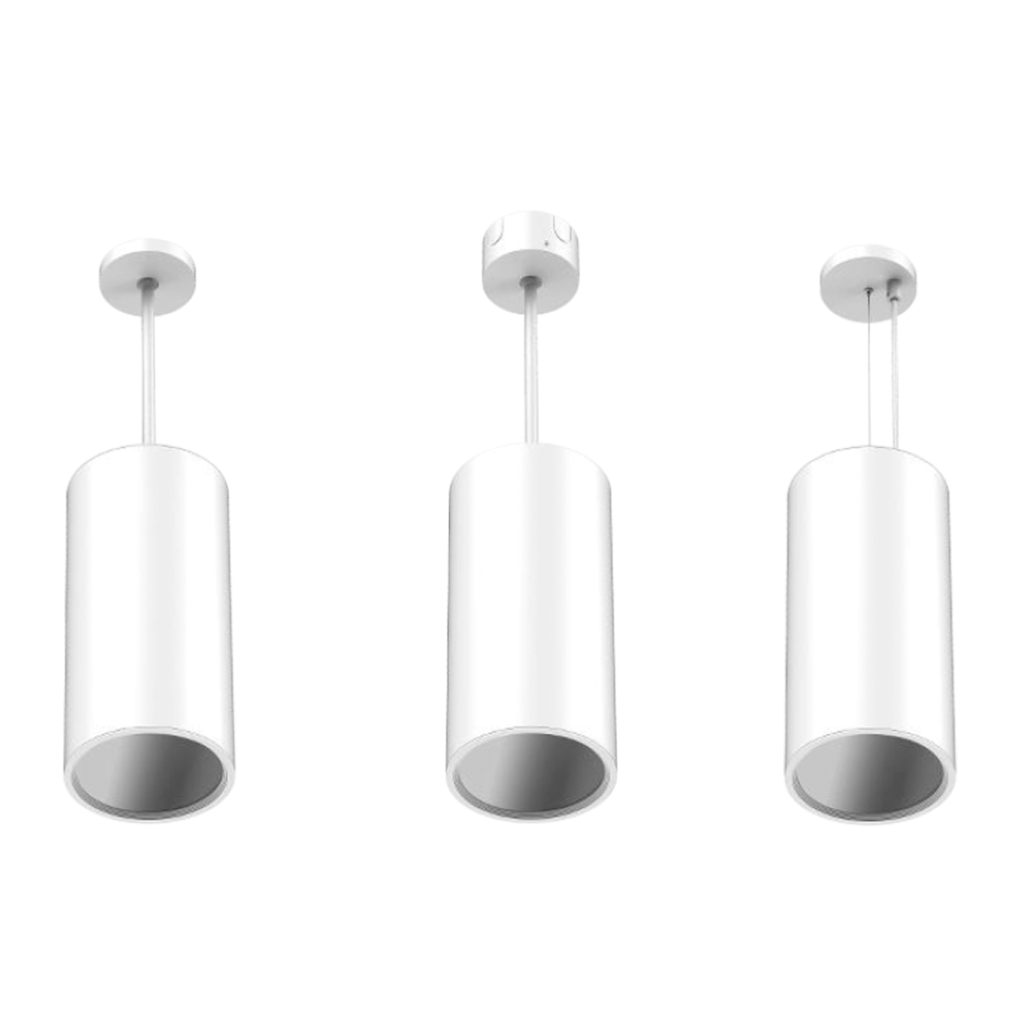

Architectural cylinders are offered in stem, cable hung, wall mounted, and surface mounted options.

WARRENTY
5 year warranty standard, Optional 10 year warranty available upon request.

LISTINGS/COMPLIANCE
• ETL – Listed for damp location.
